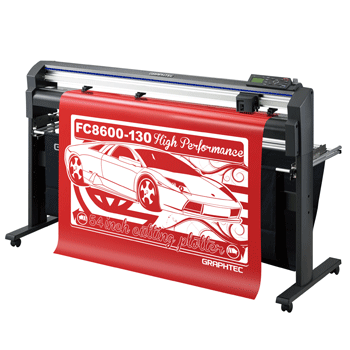

Graphtec FC8600-130 - 54" Professional Vinyl Cutter/Plotter

Graphtec FC8600-130 - 54" Professional Vinyl Cutter/Plotter
Graphtec FC8600-130 - 54" Professional Vinyl Cutter/Plotter
Graphtec FC8600-130 - 54" Professional Vinyl Cutter/Plotter
Graphtec FC8600-130 - 54" Professional Vinyl Cutter/Plotter
Graphtec FC8600-130 - 54" Professional Vinyl Cutter/Plotter
Graphtec FC8600-130 - 54" Professional Vinyl Cutter/Plotter
(Click to see larger image and other views)
SKU: FC8600-130
Call our sales office at 800-327-7562 x5 ~ Nobody beats NEPCO on Graphtec Cutters!
Product Details

The FC8600 series high-performance cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users.


The FC8600 series features a maximum cutting speed of 58.5 in/sec, 4.0G maximum acceleration, and 20 to 600g selectable cutting forces, allowing users to process diamond grade, high-intensity reflective film, sandblast resist rubber, automotive window & paint protection films, self-adhesive vinyl, Amberlithâ„¢ and Rubylithâ„¢, among other media types.

The FC8600 has added features:

3 inch wide user-friendly LCD control Panel, a Dual configuration function (two-user set and save customized conditions), included Ethernet capability (run multiple machines from one location), and an option for additional push rollers with 3 tension settings and the new 5th Generation ARMS system (automatically detects registration marks with color variants).

Graphtec's next generation ARMS system adjusts for several types of potential print distortions, allowing for accurate contour cutting of pre-printed images and decals.

New features of the new ARMS:



  • Optical Sensor for Auto Alignment

  • Sensitivity adjustment for registration mark detection on various media and colors.



The new FC8600 series is available in five model sizes:

FC8600-60 24", FC8600-75 30", the FC8600-100 42", the FC8600-130 54", the FC8600-160. Maximum compatible media widths for each model are 30.3", 36", 48", 60", and 72" respectively.

New manufacturing technologies, along with the latest engineering advancements, have allowed Graphtec to make an unprecedented move forward in the industry. High performance features have been added to the new series yet its competitive pricing remains.

With the world's fastest throughput performance and superb accuracy, the new FC8600 series accommodates the most demanding cutting and plotting projects and provides users with the versatility needed for a wide variety of applications.
